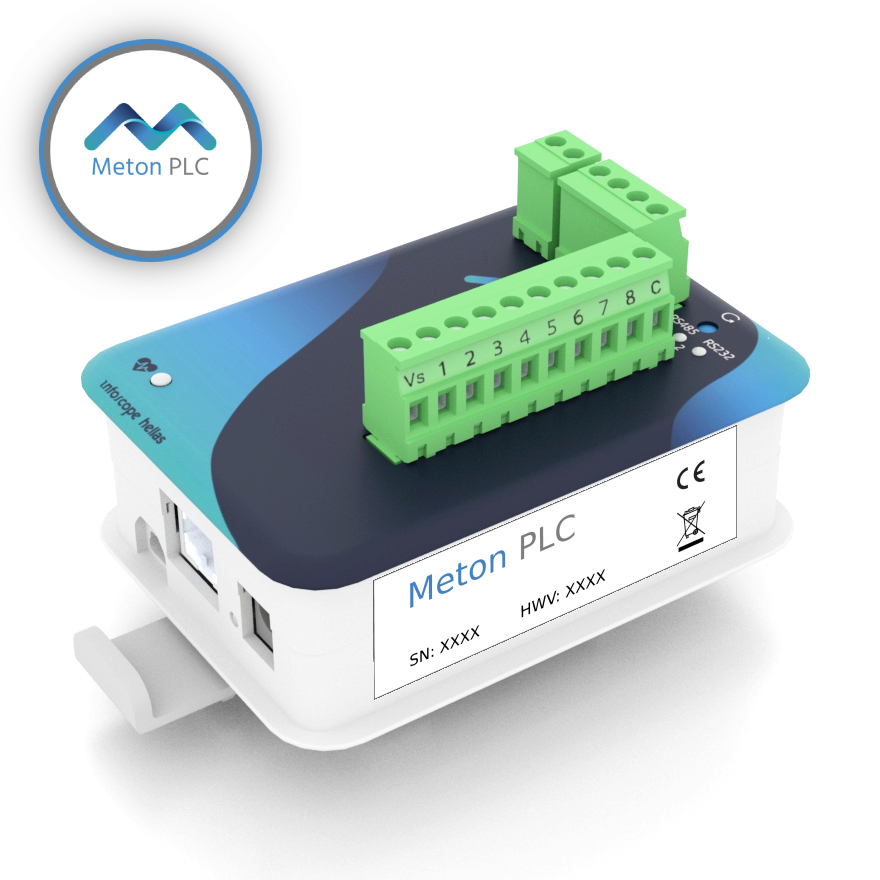

Meton PLC

DescriptionMeton PLC - SCADA integration, fieldbus protocols support (EtherCAT, OPC UA, PROFINET, KNX, M-Bus, Modbus, MQTT), BACnet IP, large-scale BMS projects, building installations, CODESYS programming

  • Integration with industrial SCADA systems with full compliance to IEC 61131-3 standards
  • I/O scanning at the μsec level via high-performance fieldbus protocols EtherCAT, OPC UA, and PROFINET
  • BACnet IP support for large-scale BMS projects in building installations
  • Integration with all types of devices through KNX, M-Bus, Modbus, and MQTT protocols
  • On-site HMI/webSCADA visualizations
  • On board sensors for analog and digital inputs
  • Proper operation rules & notification configuration through extremely user friendly interface (on a personal computer or tablet)
  • Alarm notification even when the data logger itself is not working / communicating properly
  • Data are available online: Very easy data export, event log, realtime overview by any pc/tablet through Meterscope Web Portal (cloud login)

Meton PLC - SCADA integration, fieldbus protocols support (EtherCAT, OPC UA, PROFINET, KNX, M-Bus, Modbus, MQTT), BACnet IP, large-scale BMS projects, building installations, CODESYS programming





Immediate Benefits

  • Ability to integrate with a vast range of automation devices through open protocols
  • Combining PLC functionality and an integrated data logging/alert system in one device
  • Flexibility for remote adjustment of automation scenario parameters
  • Monitored 24/7 by the Meterscope Web Portal, providing alerts even in case of device malfunction or power outage
  • Can monitor the energy consumption of each device / floor / sector / building
  • Immediate notification in case of malfunction/damage through e-mail/sms/phonecall, regarding the emergency of the event







Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumptionSpecial Features

  • The same device supports both industrial automation projects (EtherCAT, OPC UA, PROFINET) and BMS projects (BACnet, KNX, M-Bus, wireless M-Bus, Modbus, MQTT).
  • It can be expanded with I/O cards that leverage high-performance fieldbus protocols.
  • Programmable using CODESYS, a widely recognized PLC application development environment that complies with IEC 61131-3 standards.
  • You can access all your installations through a single login to the Meterscope Manager Web Portal, which continuously evolves with automatic software updates
  • EN 12830:2018 compliance for vulnerable product temperature monitoring
  • Automated weekly report for each interconnected device of the equipment, pointing out deviations / pottential malfunction
  • Free technical inspection even after the warranty period has expired
  • Designed in Greece / Produced in the EU





Wireless Industrial Networking with Wireless Modbus ProtocolWireless Industrial Networking - Wireless Modbus Mesh - LumenRadio W-Modbus Device. Transparent wireless networking for RS485, Modbus RTU, and BACnet MS/TP master/slave communication


LumenRadio offers solutions for converting industrial serial communication protocols like Modbus RTU and BACnet MS/TP into wireless formats, which we have integrated into the Meton PLC.



Through our collaboration with the Swedish company Lumenradio, we provide our industrial wireless network solution using Wireless Modbus RTU protocol, allowing the network to transition from wired to wireless.





Read more





Full compliance with the EN-12830:2018 standard 'Temperature recording during transport, storage & distribution of temperature-sensitive goods - Tests, performance, suitability' as an end-to-end cloud SaaS system with class IIIb software certification (according to WELMEC 7.2), suitable for storage (S) applications with an accuracy of 0.5 in the measurement range -30...45°C, for temperature recording in temperature-sensitive products





Contact us for more information, demo account or quotation!





Meton PLC - SCADA integration, fieldbus protocols support (EtherCAT, OPC UA, PROFINET, KNX, M-Bus, Modbus, MQTT), BACnet IP, large-scale BMS projects, building installations, CODESYS programming
English

Gateways / Data Loggers:



Meterscope Data Collection System



Brief presentation of all the available gateways/data loggers & features



Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumption



Meterscope provides compact solutions for small enterprises, supports complicated and large scale modular projects and can be customized to cover specific demands: Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.







Temperature Data Logger - Meton  EASE

Meton Ease temperature data logger - Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc)

Wireless temperature / humididty / digital input data logger for compact application
  • Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc) & 1 digital output (relay, siren, light)
  • Local WiFi connection - easy and low cost internet service
  • Strong Battery / Low consumption: Can function for at least on month without power supply.

Read more about Meton Ease







Wireless Temperature Gateway - Meton Wireless

Meton Wireless Gateway - Wireless Temperature and Humidity Logging via wireless mBus protocolPlug & play wireless temperature gateway very easy to install
  • Monitoring temperature and digital inputs (operational status, door status, etc.) of refrigeration chambers, refrigerators, freezers, product storage areas, and other devices wirelessly.
  • Sensors communicate via the industrial wireless mBus protocol for greater reliability and energy saving.
  • Autonomous sensors with the ability to be placed even within chambers and a battery life of up to 14 years!
  • Data collection from numerous points and easy to expand



Read more about Meton Wireless







Temperature Data Logger - Meton Sense & Sense Plus

Meton Sense Data Logger - Temperature recording/monitoring - Cold rooms,cooling tanks, freezers, refrigerators, curing chambers, kettles, ovens and custom equipmentΤemperature / humididty / digital input data logger supporting 8 on board inputs and expansion modules
  • Cold rooms, refrigerators, curing chambers, kettles, ovens and custom equipment temperature
  • Digital input (normally open/normally closed, function) & outputs (relay, siren, light)
  • Extensive sensor options (RTDs: Pt100, Pt1000, 2 or 3 wire, Thermistors: NTC or PTC, Thermocouple K, J, generic signal transmitters 4...20mA, 0-10V) for a vast temperature range (-200°C to +1800°C), high metering accuracy and long-distance coverage with the Meton Sense Plus

Read more about Meton Sense



Meton Sense - Wireless Addon Extra Features

Meton Sense - Wireless Addon - Wireless sensors allowing for extra long battery life (up to 14 years!) & industrial communication protocol providing strong encryption and wide range in order to cover several levels of a building

  • Wireless sensors allowing for extra long battery life (up to 14 years!) &
  • Industrial communication protocol, providing strong encryption
  • Long range reception, covering whole building blocks / serveral floors in urban area
  • Waterproof IP65, polycarbonate cabinet
  • Autonomous internet connection (3G Modem) for stand alone installation or fallback handling in case of bad network
  • Power supply back up (UPS) for energy autonomy and monitoring under power outage condition

Read more about the Wireless Addon of Meton Sense







Device Controllers' Gateway - Meton Connect & Connect Plus

Cold rooms, freezers, cooling tanks, refrigerators, curing chambers, kettles, ovens and custom equipment modbus connection & dataCollecting data directly from the interconnected devices' controllers
  • Recording of data (temperature, operational status of individual components, digital contacts) of cooling control devices, refrigeration chambers, refrigerators, freezers, product storage areas, etc. Interfacing with a variety of controllers (e.g., Dixell, Pego, Eliwell, LAE, etc.) widely used in professional spaces that support the Modbus Protocol
  • Monitoring of energy data (energy consumption, power, network voltage, current) in conjunction with a smart energy meter
  • Capability to collect analog/digital data from integrated sensors with Meton Connect Plus

Read more about Meton Connect







Advanced Recording System - Meton Prime

Data from controllers of refrigerators, cooling chambers, and other devices - measurement of specialized parameters - integration with specialized sensorsSpecialized data collection system
  • Recording of data (temperature, humidity, level, pressure, energy consumption, power, voltage/current, status of individual components, digital contacts) from cooling units, heating systems, transmitters, cooling towers, boiler rooms, etc.
  • Integration with a variety of controllers, specialized devices, and PLCs
  • Ability to collect analog/digital data from specialized sensors (liquid flow, hydrometry data, conductivity, ethylene concentration, heat pump operation, specialized scales, etc.)



Explore Meton Prime, for measurement and data recording from sensors of all types.







Laboratory Equipment Monitoring Gateway - Meton Lab



Data Collection Recorder for Laboratory / Medical Equipment

Meton Lab gateway: Hospital, lab & pharmaceutical industry equipment monitoring - Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging, wireless M-Bus & Modbus protocol gateway

  • Data recording (temperature, level, operational status, digital contacts, alarms) of laboratory devices, ultra-freezers, etc., in hospitals, pharmacies, stem cell / graft banks, etc.
  • Measurement accuracy up to +/- 0.15oC with specialized sensors and focus on temperatures from -40 to -185 degrees Celsius
  • Interface with models of ultra-freezers and liquid nitrogen containers for the storage of stem cells/grafts (e.g., ThermoFisher Scientific Thermoforma 700 Series / 7402 / 7403, NEW BRUNSWICK SCIENTIFIC U410, Airliquide Espace 151 / RCB 600 / Arpege 170, Baglioni CryoBA, Taylor Wharton CryoCe24K, etc.)
  • Enhanced device connectivity and simplified installation processes through wireless integration, leveraging the widely adopted Modbus communication protocol and transforming traditional wired setups into a seamless wireless mesh network



Read more about Meton Lab





Contact us for more information, demo account or invoice!
